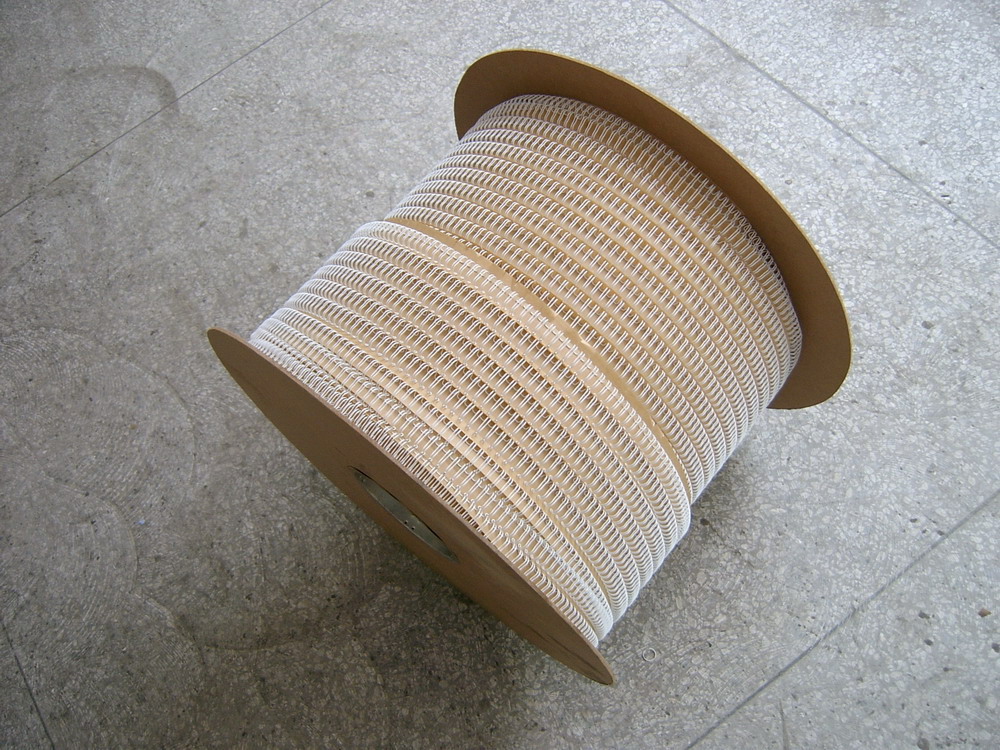

Nylon coated double loop wire twin ring wire
Size:
From3/16"--9/16" for 3: 1 pitch
From 1/4"--1-1/2" for 2: 1 pitch
Special size and color available on request.
Packing: Spools or per-cuting package.
Twin Wire Specification: | |||||
Pitch | Specification | Circle Drive (mm) | Binding thickness (mm) | Quantity/ctn | Diameter of wire (mm) |
P3:1 | 3/16" | 4.8 | 3.0 | 118000 | 0.70 |
P3:1 | 1/4" | 6.4 | 4.0 | 84000 | 0.70 |
P3:1 | 5/16" | 7.9 | 5.6 | 60000 | 0.80 |
P3:1 | 3/8" | 9.5 | 7.0 | 43000 | 0.80 |
P3:1 | 7/16" | 11.1 | 9.5 | 32000 | 0.90 |
P3:1 | 1/2" | 12.7 | 11.1 | 26000 | 0.90 |
P3:1 | 9/16" | 14.3 | 12.7 | 19300 | 1.00 |
P2:1 | 1/4" | 6.4 | 4.0 | 56000 | 0.70 |
P2:1 | 5/16" | 7.9 | 5.6 | 40000 | 0.80 |
P2:1 | 3/8" | 9.5 | 7.0 | 29500 | 0.80 |
P2:1 | 7/16" | 11.1 | 9.5 | 21000 | 0.90 |
P2:1 | 1/2" | 12.7 | 11.1 | 17500 | 0.90 |
P2:1 | 9/16" | 14.3 | 12.7 | 13000 | 1.00 |
P2:1 | 5/8" | 15.9 | 13.2 | 10500 | 1.10 |
P2:1 | 3/4" | 19.0 | 15.0 | 7000 | 1.20 |
P2:1 | 7/8" | 22.2 | 19.0 | 5000 | 1.20 |
P2:1 | 1" | 25.4 | 21.0 | 4500 | 1.25 |
P2:1 | 1-1/8" | 28.6 | 25.4 | 3400 | 1.50 |
P2:1 | 1-1/4" | 31.8 | 28.6 | 2250 | 1.50 |
P2:1 | 1-1/2" | 38.1 | 32.1 | CUT PACKING | 1.50 |
|
|
